Applying next-generation DNA sequencing to resolve the Thelypteris angustifrons species complex (Thelypteridaceae)

class: center, middle, inverse, title-slide

# Applying next-generation DNA sequencing to resolve the Thelypteris angustifrons species complex (Thelypteridaceae)
### Joel H. Nitta, Atsushi Ebihara, Narumi Nakato National Museum of Nature and Science, Japan
### 2018/10/16

---

class: inverse
background-position: 50% 50%
background-image: url(https://www.dropbox.com/s/tr5s7p2x3rk6sfd/T_angustifrons_tsukuba.jpg?raw=1)

---
# Why NGS for ferns?

__Polyploid species complexes__ are an important part of fern biodiversity, and yet...

- Most studies are based on just a __few loci__

- Can’t distinguish between incomplete lineage sorting, introgression, etc.

![](https://ce8f5f2ec.cloudimg.io/fit/800x220/ffffff/https://ksassets.timeincuk.net/wp/uploads/sites/54/2016/11/mystery-box-1-320x180.jpg)

---
background-position: 50% 40%
background-image: url(https://ce8f5f2ec.cloudimg.io/height/400/n/https://cdn-images-1.medium.com/max/1600/1*yYRmE9dSAcge5ANf0JV_pg.jpeg)
# Finally!

.footnote[Li, F.W. et al. 2018. "Fern genomes elucidate land plant evolution and cyanobacterial symbioses." *Nature Plants* 4:460–472]

---
class: center, middle

# It is time to bring next-gen methods to fern species complexes!

---
class: center, middle
# The _P. angustifrons_ complex
## -The Story So Far-

---
# The _P. angustifrons_ complex

.pull-left[
*P. glanduligera*
- N. India, Indonesia, Thailand, China, Taiwan, Korea, Japan

*P. angustifrons*
- China, Taiwan, Korea, Japan

*P. cystopteroides*
- S. China, Taiwan, S. Japan

*P. miyagii*
- S. Japan only

]

.pull-right[
![](https://www.dropbox.com/s/zxiv68yr995ieuj/T_angustifrons_complex.jpg?raw=1)
]

.footnote[Ebihara, A. 2016]

---
# The _P. angustifrons_ complex

.pull-left[
*P. glanduligera*
- 4x (Japan, Nepal). In Japan X=27, but X=34, 36, or 40 reported elsewhere

*P. angustifrons*
- 2x, 3x, 6x (Japan, maybe Taiwan). X=27

*P. cystopteroides*
- 2x, 4x (S. Japan). X=27

*P. miyagii*
- 2x (Okinawa). X=27

]

.pull-right[
![](https://www.dropbox.com/s/zxiv68yr995ieuj/T_angustifrons_complex.jpg?raw=1)
]

.footnote[Ebihara, A. 2016]

---

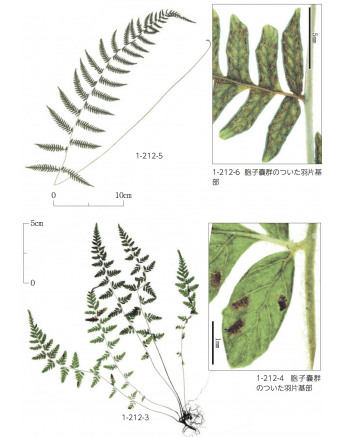

# Hybrids

.pull-left[
*P. angustifrons* × *glanduligera*
- 4x, 5x

*P. angustifrons* × *cystopteroides*
- 4x, 5x
]

.pull-right[
![](https://ce8f5f2ec.cloudimg.io/fit/344x437/ffffff/https://www.dropbox.com/s/4fip5d9hx1xu6m8/T_angustifrons_hybrids.jpg?raw=1
)
]

.footnote[Ebihara, A. 2016]

---
background-image: url(https://ce8f5f2ec.cloudimg.io/fit/800x600/ffffff/https://www.dropbox.com/s/o5mgq8jt5dfw0jn/rbcl_tree.png?raw=1)
# _rbcL_

---
background-image: url(https://ce8f5f2ec.cloudimg.io/fit/800x600/ffffff/https://www.dropbox.com/s/oufhjtp692wf1pn/pgic_tree.png?raw=1)
# _PGIC_

---
# The Story So Far
.pull-left[
Poor correlation between morphology and DNA

Many polytomies

*P. glanduligera* only known from 4x

Lack of sampling outside of Japan
]

.pull-right[
![](https://ce8f5f2ec.cloudimg.io/fit/350x450/ffffff/https://www.dropbox.com/s/eohks19p8cbus5j/summary_hypothesis.png?raw=1)
]

---
class: center, middle
# Methods

---
.pull-left[
## Sequence Capture

Short reads (300 bp PE on MiSeq)

Hundreds of loci

Works on degraded DNA

This study: 194 genes across Eupolypod II ferns

]

.pull-right[
## Pacbio + PURC

Long reads (1—10 kb on Pacbio)

< 10 genes

Requires high-quality DNA

This study: 4 genes with complex-specific primers

]

<div id="htmlwidget-02987c16c38f53252b2e" style="width:100%;height:302.4px;" class="grViz html-widget"></div>
<script type="application/json" data-for="htmlwidget-02987c16c38f53252b2e">{"x":{"diagram":"digraph {\ngraph[layout = dot, rankdir = LR]\n\n subgraph cluster_1 {\n label=\"Pacbio + PURC\";\n labeljust=\"l\";\n node [shape = rectangle, style = rounded]\n\n f [label = \"Primer design\"]\n g [label = \"PCR\"]\n h [label = \"Pacbio \n sequencing\"]\n i [label = \"PURC\"]\n j [label = \"Phylogenetic \n analysis\"]\n\n f -> g -> h -> i -> j\n }\n\n subgraph cluster_0 {\n label=\"Sequence Capture\";\n labeljust=\"l\";\n node [shape = rectangle, style = rounded]\n\n a [label = \"Bait design\"]\n b [label = \"Library \n construction\"]\n c [label = \"Sequence \n capture\"]\n d [label = \"Illumina \n sequencing\"]\n e [label = \"Phylogenetic \n analysis\"]\n\n a -> b -> c -> d -> e\n }\n\n}","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>

---
.pull-left[
## Sequence Capture

Short reads (300 bp PE on MiSeq)

Hundreds of loci

Works on degraded DNA

This study: 194 genes across Eupolypod II ferns

]

.pull-right[
## Pacbio + PURC

Long reads (1—10 kb on Pacbio)

< 10 genes

Requires high-quality DNA

This study: 4 genes with complex-specific primers

]

<div id="htmlwidget-7e545af01ef0d7474bd0" style="width:100%;height:302.4px;" class="grViz html-widget"></div>
<script type="application/json" data-for="htmlwidget-7e545af01ef0d7474bd0">{"x":{"diagram":"digraph {\ngraph[layout = dot, rankdir = LR]\n\nsubgraph cluster_1 {\n label=\"Pacbio + PURC\";\n labeljust=\"l\";\n node [shape = rectangle, style = rounded]\n\n f [label = \"Primer design\"]\n g [label = \"PCR\"]\n h [label = \"Pacbio \n sequencing\"]\n i [label = \"PURC\"]\n j [label = \"Phylogenetic \n analysis\"]\n\n f -> g -> h -> i -> j\n } \n\nsubgraph cluster_0 {\n label=\"Sequence Capture\";\n labeljust=\"l\";\n node [shape = rectangle, style = rounded]\n\n a [label = \"Bait design\"]\n\n node [shape = rectangle, fillcolor=grey, style=\"rounded,filled\"]\n b [label = \"Library \n construction\", fontcolor = white]\n c [label = \"Sequence \n capture\", fontcolor = white]\n d [label = \"Illumina \n sequencing\", fontcolor = white]\n e [label = \"Phylogenetic \n analysis\", fontcolor = white]\n\n a -> b -> c -> d -> e\n }\n\n\n}","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>

---
<img src="index_files/figure-html/purc_flow_plain-1.png" width="1365" />

.footnote[Rothfels, C. et al. 2017 *New Phyt.* 213:413—429]

---
<img src="index_files/figure-html/purc_flow_annotated-1.png" width="1365" />

.footnote[Rothfels, C. et al. 2017 *New Phyt.* 213:413—429]

---
<img src="index_files/figure-html/purc_flow_annotated_red-1.png" width="1365" />

.footnote[Rothfels, C. et al. 2017 *New Phyt.* 213:413—429]
---
# PURC Analysis Regimes

<table class="table" style="font-size: 16px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Regime </th>
 <th style="text-align:right;"> clustID1 </th>
 <th style="text-align:right;"> clustID2 </th>
 <th style="text-align:right;"> clustID3 </th>
 <th style="text-align:right;"> clustID4 </th>
 <th style="text-align:left;"> Uchime settings </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> a </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:left;"> normal </td>
 </tr>
 <tr>
 <td style="text-align:left;"> b </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.990 </td>
 <td style="text-align:left;"> normal </td>
 </tr>
 <tr>
 <td style="text-align:left;"> c </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.990 </td>
 <td style="text-align:right;"> 0.990 </td>
 <td style="text-align:left;"> normal </td>
 </tr>
 <tr>
 <td style="text-align:left;"> d </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:left;"> normal </td>
 </tr>
 <tr>
 <td style="text-align:left;"> e </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:left;"> normal </td>
 </tr>
 <tr>
 <td style="text-align:left;"> f </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:left;"> strict </td>
 </tr>
 <tr>
 <td style="text-align:left;"> g </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.990 </td>
 <td style="text-align:left;"> strict </td>
 </tr>
 <tr>
 <td style="text-align:left;"> h </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.990 </td>
 <td style="text-align:right;"> 0.990 </td>
 <td style="text-align:left;"> strict </td>
 </tr>
 <tr>
 <td style="text-align:left;"> i </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:right;"> 0.995 </td>
 <td style="text-align:left;"> strict </td>
 </tr>
 <tr>
 <td style="text-align:left;"> j </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:right;"> 0.997 </td>
 <td style="text-align:left;"> strict </td>
 </tr>
</tbody>
</table>

.small[normal: -abskew 2.0 -minh 0.28 -xn 8.0 -dn 1.4 strict: -abskew 1.1 -minh 0.20 -xn 3.0 -dn 0.5]

---
exclude: true
# Analysis Pipeline

<div id="htmlwidget-ccdb05cc3293bb62c441" style="width:720px;height:432px;" class="grViz html-widget"></div>
<script type="application/json" data-for="htmlwidget-ccdb05cc3293bb62c441">{"x":{"diagram":"digraph {\n \ngraph[layout = dot, rankdir = LR]\n\n## Setup to align nodes within a rank\n# - make invisible ranks\nnode [style=invisible]\nrank1; rank2; rank3; rank4; rank5; rank6; rank7\n\n# - make \"invisible\" (white) link between them\nrank1 -> rank2 -> rank3 -> rank4 -> rank5 -> rank6 -> rank7 [color=white]\n\nnode [shape = rectangle, style = rounded, fontsize = 18]\n\na [label = \"CCS Reads\"]\nb [label = \"Filtered Reads\"]\nc [label = \"Regime a\"]\nd [label = \"Regime b\"]\n\n{rank = same; \n# regime a genes\ne [label = \"COP9\"]\nf [label = \"DUF1077\"]\ng [label = \"IBR3\"]\nh [label = \"PGIC\"]\n\n# regime b genes\ni [label = \"COP9\"]\nj [label = \"DUF1077\"]\nk [label = \"IBR3\"]\nl [label = \"PGIC\"]\n}\n\n{rank = same; \n# crunch clusters a genes\nm [label = \"COP9\"]\nn [label = \"DUF1077\"]\no [label = \"IBR3\"]\np [label = \"PGIC\"]\n\n# crunch clusters b genes\nq [label = \"COP9\"]\nr [label = \"DUF1077\"]\ns [label = \"IBR3\"]\nt [label = \"PGIC\"]\n}\n\n# recombined genes\n{rank = same;\nu [label = \"COP9\"]\nv [label = \"DUF1077\"]\nw [label = \"IBR3\"]\nx [label = \"PGIC\"]\nempty1 [style = invisible]\nempty2 [label = \"Consensus \n alignments\", fillcolor = white, style = filled]\nempty3 [style=invisible]\nempty4 [style=invisible]\n}\n\n# final trees\n{rank = same;\ntree_a [label = \"COP9\"]\ntree_b [label = \"DUF1077\"]\ntree_c [label = \"IBR3\"]\ntree_d [label = \"PGIC\"]\nempty5 [style = invisible]\nempty6 [label = \"Final \n trees\", fillcolor = white, style = filled]\nempty7 [style=invisible]\nempty8 [style=invisible]\n}\n\na -> b \nb -> c [label = \"PURC \n \", fontname = Courier, fontsize = 21]\nb -> d\nc -> {e f g h}\nd -> {i j k l}\ne -> m [label = \"crunch \n clusters \n \", fontname = Courier, fontsize = 21]\nf -> n; g -> o; h -> p; i -> q; j -> r; k -> s; l -> t\n{m q} -> u; {n r} -> v; {o s} -> w; {p t} -> x\nu -> tree_a [label = \"RAxML \n \", fontname = Courier, fontsize = 21]\nv -> tree_b; w -> tree_c; x -> tree_d\n\n\n{rank = same\nrank3 -> c -> d [style=invis]\nrankdir = TB\n}\n\n{rank = same\nrank4 -> e -> f -> g -> h -> i -> j -> k -> l [style=invis]\nrankdir = TB\n}\n\n{rank = same\nrank5 -> m -> n -> o -> p -> q -> r -> s -> t [style=invis]\nrankdir = TB\n}\n\n{rank = same\nrank6 -> empty1 -> empty2 -> u -> v -> w -> x -> empty3 -> empty4 [style=invis]\nrankdir = TB\n}\n\n{rank = same\nrank7 -> empty5 -> empty6 -> tree_a -> tree_b -> tree_c -> tree_d -> empty7 -> empty8 [style=invis]\nrankdir = TB\n}\n\n}","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>

---
# Pacbio + PURC Sampling

4 loci (*COP9*, *DUF1077*, *IBR3*, *PGIC*)

34 samples
<table class="table" style="font-size: 16px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Taxon </th>
 <th style="text-align:left;"> Ploidy (no. samples) </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. angustifrons </td>
 <td style="text-align:left;"> 3x (1), 6x (9), unknown (2) </td>
 </tr>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. cystopteroides </td>
 <td style="text-align:left;"> 4x (1), unknown (2) </td>
 </tr>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. glanduligera </td>
 <td style="text-align:left;"> 4x (8) </td>
 </tr>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. miyagii </td>
 <td style="text-align:left;"> 2x (3) </td>
 </tr>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. sp. </td>
 <td style="text-align:left;"> 3x (1) </td>
 </tr>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> 4x (1), 5x (2) </td>
 </tr>
 <tr>
 <td style="text-align:left;font-style: italic;"> P. cystopteroides × T. angustifrons </td>
 <td style="text-align:left;"> 4x (1), 5x (3) </td>
 </tr>
</tbody>
</table>

Distribution: Japan (30), South Korea (2), Taiwan (2)
---
class: center, middle
# Results

---
## Dataset
<table class="table" style="font-size: 16px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Run </th>
 <th style="text-align:left;"> Platform </th>
 <th style="text-align:right;"> CCS Reads </th>
 <th style="text-align:right;"> Filtered Reads* </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> This Study </td>
 <td style="text-align:left;"> RSII </td>
 <td style="text-align:right;"> 25879 </td>
 <td style="text-align:right;"> 18751 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Rothfels et al. R2 </td>
 <td style="text-align:left;"> RSI </td>
 <td style="text-align:right;"> 30732 </td>
 <td style="text-align:right;"> 18189 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Rothfels et al. R3 </td>
 <td style="text-align:left;"> RSI </td>
 <td style="text-align:right;"> 44721 </td>
 <td style="text-align:right;"> 27994 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Rothfels et al. R4 </td>
 <td style="text-align:left;"> RSI </td>
 <td style="text-align:right;"> 38982 </td>
 <td style="text-align:right;"> 28550 </td>
 </tr>
</tbody>
</table>

.small[*length > 600bp and expected errors < 5]

---
## Dataset
<img src="index_files/figure-html/ccs_phred_scores-1.svg" width="120%" />

---
## Dataset
<img src="index_files/figure-html/ccs_length-1.svg" width="120%" />

---
<img src="index_files/figure-html/plot_allele_coverage-1.svg" width="120%" />

---
exclude: true
<img src="index_files/figure-html/plot_allele_coverage_scales_free-1.svg" width="120%" />

---
<img src="index_files/figure-html/plot_pacbio_allele_count-1.svg" width="120%" />

---
class: small-margins

.left-tree[
![](index_files/figure-html/COP9_tree-1.svg)

.small[RAxML, 1000 bootstrap replicates]
]
.right-table[<table class="table table-striped table-condensed" style="font-size: 9px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Taxon </th>
 <th style="text-align:left;"> Specimen </th>
 <th style="text-align:left;"> Formula </th>
 <th style="text-align:right;"> Ploidy </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3199_f </td>
 <td style="text-align:left;"> B2/C14/C8 </td>
 <td style="text-align:right;"> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3313 </td>
 <td style="text-align:left;"> B1/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2998 </td>
 <td style="text-align:left;"> B1/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2952 </td>
 <td style="text-align:left;"> B1/C15/C8/C9 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3028 </td>
 <td style="text-align:left;"> B2/C10/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3036 </td>
 <td style="text-align:left;"> B1/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3041 </td>
 <td style="text-align:left;"> B1/C2/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3068 </td>
 <td style="text-align:left;"> B1/C2/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3069 </td>
 <td style="text-align:left;"> B1/C1/C2/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3072 </td>
 <td style="text-align:left;"> B2/C2/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2823 </td>
 <td style="text-align:left;"> B2/C2/C8 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2866 </td>
 <td style="text-align:left;"> B2/C2/C8 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_2855 </td>
 <td style="text-align:left;"> B2/C10/C8 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_3024 </td>
 <td style="text-align:left;"> B2/C2/C7/C8 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_3025 </td>
 <td style="text-align:left;"> B1/B2/C4/C8 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_3250_3 </td>
 <td style="text-align:left;"> C10/C13/C2 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_2007_251 </td>
 <td style="text-align:left;"> C10/C13 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_2953 </td>
 <td style="text-align:left;"> B2/C11/C13/C8 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Hyodo_2837 </td>
 <td style="text-align:left;"> B1/C3/C8 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3249_3 </td>
 <td style="text-align:left;"> B2/C10/C8 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_3083 </td>
 <td style="text-align:left;"> B1/C13/C16/C8 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3046 </td>
 <td style="text-align:left;"> B1/C6 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3050 </td>
 <td style="text-align:left;"> B1/B2/C5/C8 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Nakato_2861 </td>
 <td style="text-align:left;"> C2 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Ebihara_3197_b </td>
 <td style="text-align:left;"> C11/C2 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. sp0 </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> C10/C12/C8 </td>
 <td style="text-align:right;"> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Thelypteris_kunthii </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> A1 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
</tbody>
</table>

]

---
class: small-margins

.left-tree[
![](index_files/figure-html/DUF1077_tree-1.svg)

]

---
class: small-margins

.left-tree[
![](index_files/figure-html/IBR3SHORT_tree-1.svg)

.small[RAxML, 1000 bootstrap replicates]
]
.right-table[<table class="table table-striped table-condensed" style="font-size: 8px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Taxon </th>
 <th style="text-align:left;"> Specimen </th>
 <th style="text-align:left;"> Formula </th>
 <th style="text-align:right;"> Ploidy </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3199_f </td>
 <td style="text-align:left;"> C11/C12/C3 </td>
 <td style="text-align:right;"> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3313 </td>
 <td style="text-align:left;"> C11/C12/C17/C18 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2998 </td>
 <td style="text-align:left;"> C12/C18/C2 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2952 </td>
 <td style="text-align:left;"> C1/C12/C7 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3028 </td>
 <td style="text-align:left;"> C1/C12 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3036 </td>
 <td style="text-align:left;"> C1/C12/C16/C23 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3041 </td>
 <td style="text-align:left;"> C11/C12/C18 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3068 </td>
 <td style="text-align:left;"> C12/C18 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3069 </td>
 <td style="text-align:left;"> C1/C12 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3072 </td>
 <td style="text-align:left;"> C1/C12/C9 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2866 </td>
 <td style="text-align:left;"> C12/C20 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_2855 </td>
 <td style="text-align:left;"> C1/C5/C6 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_3024 </td>
 <td style="text-align:left;"> C12/C18/C7 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_3025 </td>
 <td style="text-align:left;"> C1/C12/C13/C16 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_2007_251 </td>
 <td style="text-align:left;"> C1/C18 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Fujimoto_070106_2 </td>
 <td style="text-align:left;"> C1/C18 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_2953 </td>
 <td style="text-align:left;"> C10/C18 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Hyodo_2837 </td>
 <td style="text-align:left;"> C1/C12/C18 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3249_3 </td>
 <td style="text-align:left;"> C11/C12/C18/C4 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_3083 </td>
 <td style="text-align:left;"> C1/C12/C18 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Ebihara_3312 </td>
 <td style="text-align:left;"> C12 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Ebihara_3266 </td>
 <td style="text-align:left;"> C12/C7 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_2859 </td>
 <td style="text-align:left;"> C12/C15/C16 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3029 </td>
 <td style="text-align:left;"> C12/C16 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3030 </td>
 <td style="text-align:left;"> C12/C14/C16 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3040 </td>
 <td style="text-align:left;"> C12/C13/C8 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3046 </td>
 <td style="text-align:left;"> B1/C12 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Nakato_2861 </td>
 <td style="text-align:left;"> C18 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Ebihara_3197_b </td>
 <td style="text-align:left;"> C18/C19/C21/C22 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Thelypteris_kunthii </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> A1 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
</tbody>
</table>

]

---
class: small-margins

.left-tree[
![](index_files/figure-html/PGIC_tree-1.svg)

.small[RAxML, 1000 bootstrap replicates]
]
.right-table[<table class="table table-striped table-condensed" style="font-size: 9px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Taxon </th>
 <th style="text-align:left;"> Specimen </th>
 <th style="text-align:left;"> Formula </th>
 <th style="text-align:right;"> Ploidy </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3199_f </td>
 <td style="text-align:left;"> C3/C4/C5/C6 </td>
 <td style="text-align:right;"> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3069 </td>
 <td style="text-align:left;"> C2 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2952 </td>
 <td style="text-align:left;"> C2/C8 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3028 </td>
 <td style="text-align:left;"> B1/B2/C3 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3036 </td>
 <td style="text-align:left;"> C2/C5/C6 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_3072 </td>
 <td style="text-align:left;"> C2/C3 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2866 </td>
 <td style="text-align:left;"> C2 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2823 </td>
 <td style="text-align:left;"> C3/C4 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_2855 </td>
 <td style="text-align:left;"> C2/C3/C5/C6 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_3024 </td>
 <td style="text-align:left;"> C3/C5/C6 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons × glanduligera </td>
 <td style="text-align:left;"> Nakato_3025 </td>
 <td style="text-align:left;"> C2/C3/C5/C6 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_3250_3 </td>
 <td style="text-align:left;"> B1/B4/C1/C9 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_2007_251 </td>
 <td style="text-align:left;"> B1/C2/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Fujimoto_070106_2 </td>
 <td style="text-align:left;"> B1/C2 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_2953 </td>
 <td style="text-align:left;"> B1/C3 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Hyodo_2837 </td>
 <td style="text-align:left;"> B1/B2/C3 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3249_3 </td>
 <td style="text-align:left;"> B1/C3 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_3083 </td>
 <td style="text-align:left;"> B1/B3/C7/C8 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_2859 </td>
 <td style="text-align:left;"> C5 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3030 </td>
 <td style="text-align:left;"> C3 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3040 </td>
 <td style="text-align:left;"> C5 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Ebihara_3266 </td>
 <td style="text-align:left;"> C4/C5 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_3050 </td>
 <td style="text-align:left;"> C4/C5/C6 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Ebihara_3194 </td>
 <td style="text-align:left;"> C3 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Nakato_2861 </td>
 <td style="text-align:left;"> C3 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. sp0 </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> B1 </td>
 <td style="text-align:right;"> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Thelypteris_kunthii </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> A1 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
</tbody>
</table>

]

---
exclude: true
class: small-margins

.left-tree[
![](index_files/figure-html/ebihara_PGIC_tree-1.svg)

.small[RAxML, 1000 bootstrap replicates]
]
.right-table[<table class="table table-striped table-condensed" style="font-size: 8px; margin-left: auto; margin-right: auto;">
 <thead>
 <tr>
 <th style="text-align:left;"> Taxon </th>
 <th style="text-align:left;"> Specimen </th>
 <th style="text-align:left;"> Formula </th>
 <th style="text-align:right;"> Ploidy </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3199_f </td>
 <td style="text-align:left;"> B5/C15 </td>
 <td style="text-align:right;"> 3 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2952 </td>
 <td style="text-align:left;"> C17/C18/C5 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3313 </td>
 <td style="text-align:left;"> C15/C17 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Nakato_2998 </td>
 <td style="text-align:left;"> B3/B5/C15/C17 </td>
 <td style="text-align:right;"> 6 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2823 </td>
 <td style="text-align:left;"> B1/B5/C13/C17 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_3199_a </td>
 <td style="text-align:left;"> B5/C13 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. angustifrons </td>
 <td style="text-align:left;"> Ebihara_2008_1714 </td>
 <td style="text-align:left;"> B2/B5/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_2007_251 </td>
 <td style="text-align:left;"> C17/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Fujimoto_070106_2 </td>
 <td style="text-align:left;"> C17/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_3199_d </td>
 <td style="text-align:left;"> C10/C14 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_3198_b </td>
 <td style="text-align:left;"> C14/C9 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_3250_4 </td>
 <td style="text-align:left;"> C10/C12/C13/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides </td>
 <td style="text-align:left;"> Ebihara_3251 </td>
 <td style="text-align:left;"> C13/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Nakato_2953 </td>
 <td style="text-align:left;"> C15/C3 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Hyodo_2837 </td>
 <td style="text-align:left;"> C13/C3/C9 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3249_3 </td>
 <td style="text-align:left;"> C13/C3 </td>
 <td style="text-align:right;"> 5 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3198_a </td>
 <td style="text-align:left;"> C11/C13/C17 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3250_1 </td>
 <td style="text-align:left;"> C13/C2/C3/C5 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3250_2 </td>
 <td style="text-align:left;"> C1/C3/C6 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Ebihara_3250_7 </td>
 <td style="text-align:left;"> B4/B5/C15/C4 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. cystopteroides × angustifrons </td>
 <td style="text-align:left;"> Hyodo_2839 </td>
 <td style="text-align:left;"> C15/C3 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Ebihara_3312 </td>
 <td style="text-align:left;"> C15/C3/C7/C8 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Ebihara_3266 </td>
 <td style="text-align:left;"> B5/C15/C3 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. glanduligera </td>
 <td style="text-align:left;"> Nakato_2859 </td>
 <td style="text-align:left;"> C15 </td>
 <td style="text-align:right;"> 4 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Ebihara_3197_b </td>
 <td style="text-align:left;"> C13/C16 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Ebihara_3194 </td>
 <td style="text-align:left;"> C13 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> P. miyagii </td>
 <td style="text-align:left;"> Nakato_2861 </td>
 <td style="text-align:left;"> C13/C3 </td>
 <td style="text-align:right;"> 2 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Thelypteris_kunthii </td>
 <td style="text-align:left;"> NA </td>
 <td style="text-align:left;"> A1 </td>
 <td style="text-align:right;"> NA </td>
 </tr>
</tbody>
</table>

]

---
# Sequence Capture Sampling
<img src="index_files/figure-html/specimen_map-1.svg" width="120%" style="display: block; margin: auto;" />

---
# Spore Sizes
<img src="index_files/figure-html/spore_size_plot-1.svg" width="120%" />

---
# DNA yield from herbarium specimens
<img src="index_files/figure-html/dna_conc-1.svg" width="120%" />

---

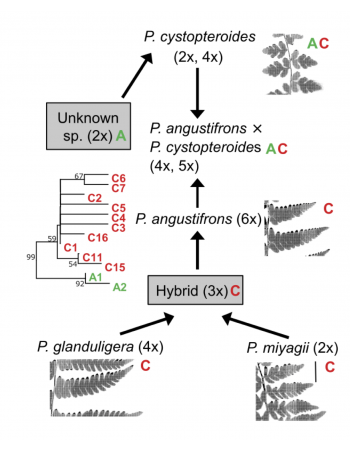

# Conclusions

Pacbio + PURC success varies by gene

- _COP9_  ✓
- _PGIC_ ✓
- _DUF1077_ ▵
- _IBR3_ ×

Different genes have different evolutionary histories

Diploid *P. glanduligera* quite rare

Sampling herbarium specimens should provide greater insight

---
class: center
# Acknowledgements

.pull-left-narrow[
![](https://ce8f5f2ec.cloudimg.io/width/100/n/http://demo.joyhsu.com/tfri/wp-content/uploads/2018/04/AFS2018-LOGO.jpg)
]

.pull-right-wide[
.asia-ferns[ASIAN SYMPOSIUM OF FERNS & LYCOPHYTES]
]

![](https://ce8f5f2ec.cloudimg.io/width/700/n/http://web.cla.kobe-u.ac.jp/group/Promis/_src/30890/jsps_logo.jpg)

![](https://ce8f5f2ec.cloudimg.io/width/700/n/http://pe.ibcas.ac.cn/images/title.gif)

Motomi Ito, Li-Yaung Kuo, Fay-Wei Li, Zhongyang Li, Carl Rothfels, Xinping Qi, Haruyo Yamaguchi
