Introduction to {targets}

## Modular, reproducible bioinformatics workflows with the {targets} R package

**Joel Nitta**

ICSB Academy 2022/06/31

https://joelnitta.github.io/icsb-targets-intro

---

## Self-introduction

.pull-left[
@joel_nitta

https://joelnitta.com

- Project Research Associate @ [Tokyo University](http://iwasakilab.k.u-tokyo.ac.jp/)

- Research interests: Ecology and evolution of __ferns__

- Hobbies: Running (after my 6YO!)
]

.pull-right[
<img src="https://github.com/joelnitta/joelnitta-site/blob/master/static/media/headers/research_img2.jpg?raw=true" alt="drawing" height="400"/>
.small[Photo: J-Y Meyer]
]

---
## Outline of today's talk

### Part I

- Introduction to {targets}

- Live coding

### Part II

- How to use {targets} in bioinformatics

- Demo: VCF workflow

To follow along with live coding, install [R](https://www.r-project.org/), [RStudio](https://www.rstudio.com/products/rstudio/download/), and [targets](https://github.com/ropensci/targets)

---
class:inverse, center, middle

# Part I

---
## Why {targets}?

### To make your code more reproducible

---
## What is reproducibility?

> The ability for others (or your future self) to re-run your code and get the same results

- Not "yes" or "no"
- Reproducibility = **mindset**
- Many aspects
  - Computing environment
  - Data availability
  - **Code automation**

---
## Workflows in R

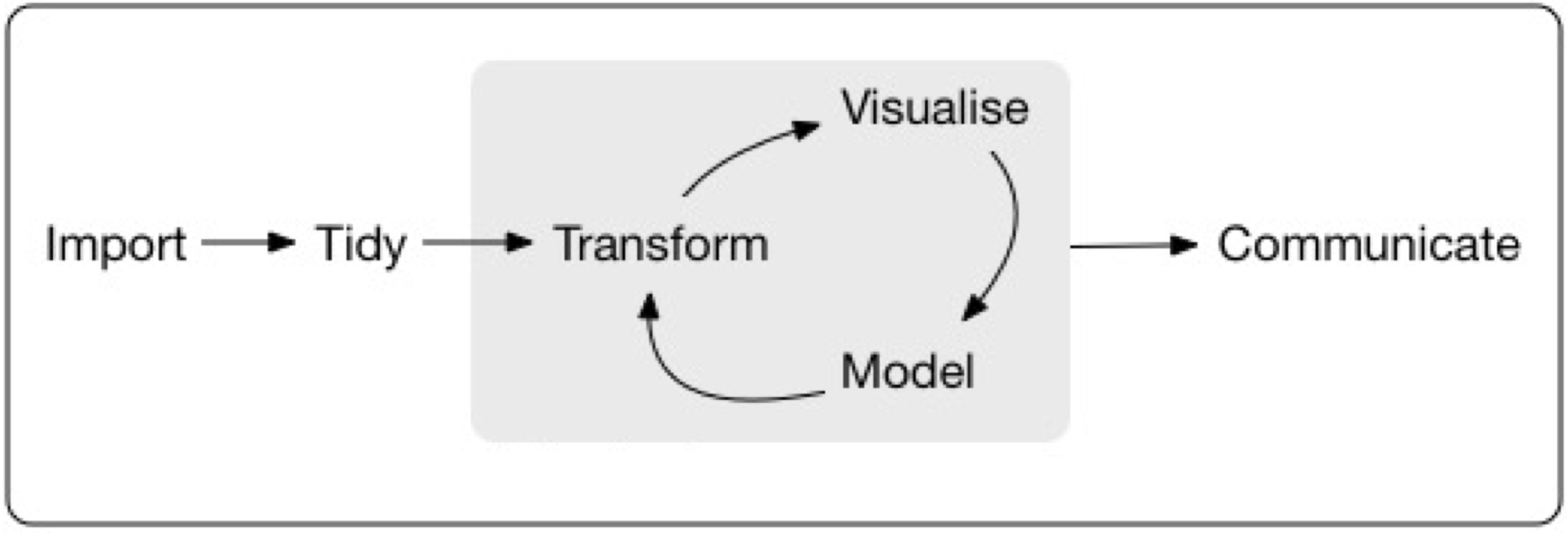

![Hadley Wickham's data analysis workflow chart](images/workflow_1.png)

**Which steps** need to be run **in what order**?

.footnote[R for Data Science https://r4ds.had.co.nz/]

---
## Workflows in R

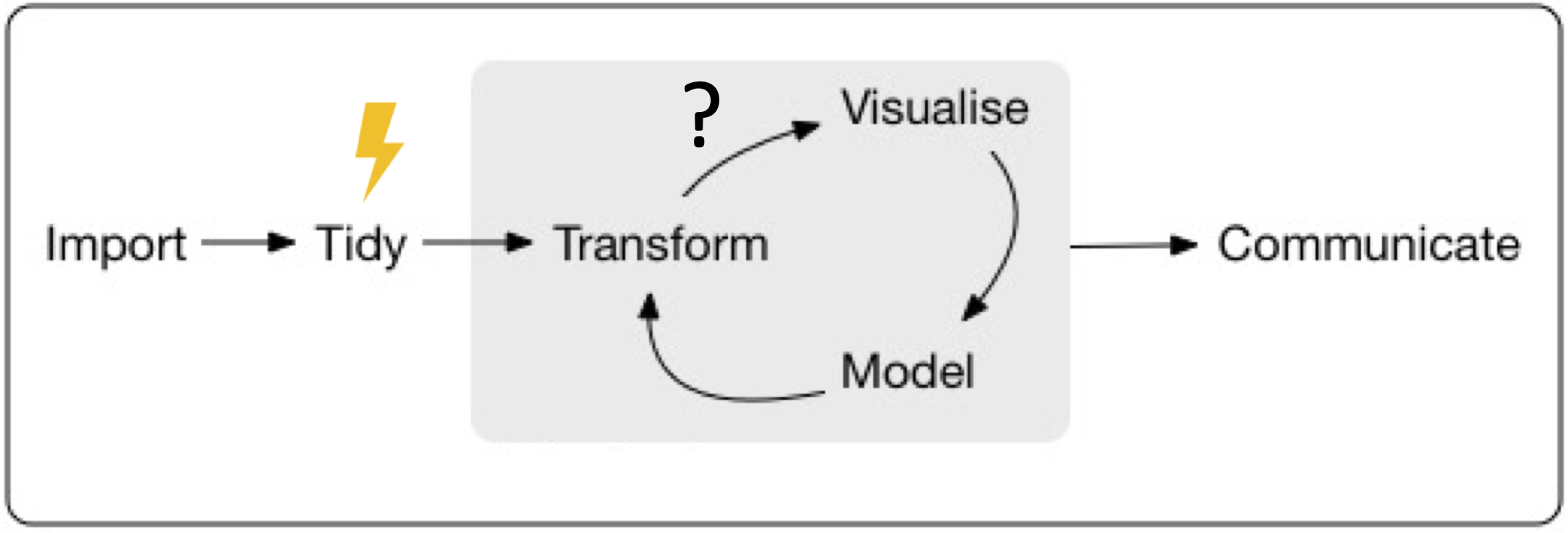

![Hadley Wickham's data analysis workflow chart with icon showing part of it changed](images/workflow_2.png)

If **one part** of a workflow changes, **how does it affect other parts?**

**How much of it do we need to re-run?**

---

## What is {targets}?

.pull-left[
- Automates workflow

- Only runs necessary steps

- Can run workflow steps in parallel (speeds up analysis)

- Provides proof that **results** are derived **from code**
]

---
## Resources

- Github https://github.com/ropensci/targets

- Package website https://docs.ropensci.org/targets/

- User manual https://books.ropensci.org/targets/

- Targetopia https://wlandau.github.io/targetopia/

- {tarchetypes} website https://docs.ropensci.org/tarchetypes/

- Discussion board https://github.com/ropensci/targets/discussions

---
## Live Coding

- `tar_script()`: Write a generic workflow script

- `tar_visnetwork()`: Visualize the state of the workflow

- `tar_make()`: Run the workflow

- `tar_load()`: Load a target from the workflow

- `tar_outdated()`: List which steps will be run next time

---
class: inverse, center, middle

# Live Coding

---
## Summary

- Write your workflow plan in `_targets.R`

- Run your workflow with `tar_make()`

- Check the status of your workflow with `tar_visnetwork()`

- Use `tar_file()` to track external files

---
## Example workflow

Gapminder workflow

- https://github.com/joelnitta/targets_gapminder_example

---
class:inverse, center, middle

# Part II

---
## Using {targets} for bioinformatics

{targets} was originally designed for workflows **in R**

How can we use {targets} in workflows that use **other software?** 🤔

- Input and output of each step is a **file** (or files)
- Write **wrapper functions** to call programs from R
- Use **docker** containers for external programs
- Use **conda** to maintain R environment
- Use **renv** to maintain R packages

---
## Using {targets} for bioinformatics

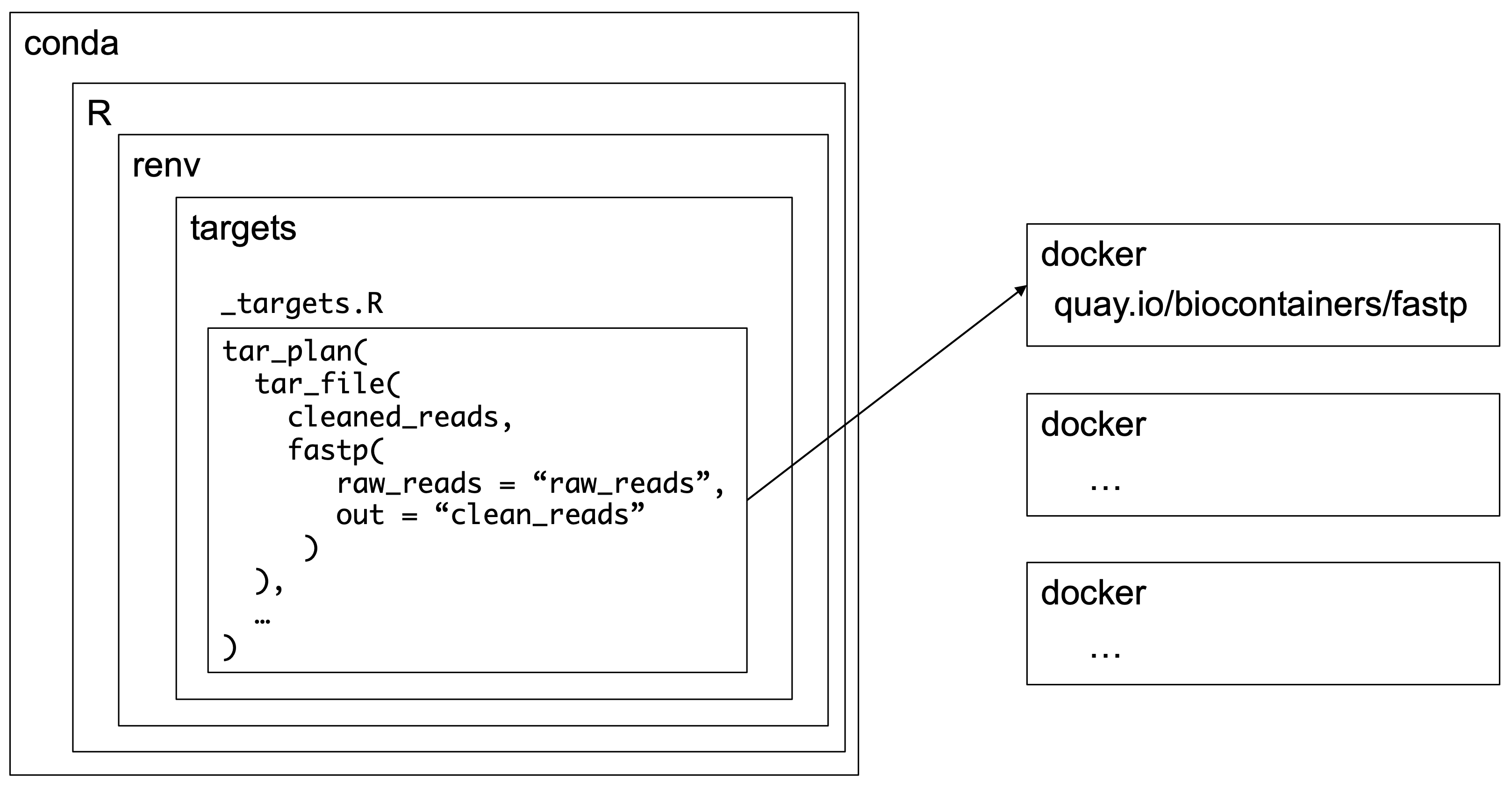

![](images/workflow_example.png)

---
## Workflow with files

.pull-left[

Store files in **`_targets/user/`**

Allows you to snapshot your workflow state with [{gittargets}](https://github.com/ropensci/gittargets)

If there is a long-running step, you could roll back to a particular
code commit in {targets}, then checkout the matching workflow state
**without re-running everything**

]

---
## Workflow with files

Store files in **`_targets/user/`**

My recommendation:

```
_targets/
└── user
    ├── data
    ├── intermediates
    └── results
```

- `data`: raw data files
- `intermediates`: output / input of intermediate steps
- `results`: final output (e.g., manuscript)

---
## Wrapper functions

R functions that call external programs.

- `system()`: most basic form, just runs exactly the input given
- `system2()`: slightly more complicated
- **`processx::run()`**
  - allows for asynchronous processes
  - can specify different working directory
  - redirection of `stderr` and `stderr`
  - many other features

Syntax:

```r
processx::run(command, args)
```

```r
processx::run("ls", c("-l", "-h")) # same as `ls -l -h`
```

---
## Use docker for external programs

.pull-left[

> A Docker container ... is a lightweight, **standalone**, executable **package of software** that includes everything needed to run an application

- **Don't need to install program (and all of its dependencies)**

]

.pull-right[
<img src="https://www.docker.com/wp-content/uploads/2022/03/Moby-logo.png" alt="drawing" height="200" style="float:right">
]

.footnote[https://www.docker.com/resources/what-container/]

---
## Use docker for external programs

- Docker image for `fastp`:

```
quay.io/biocontainers/fastp:0.23.1--h79da9fb_0
```

Part after `:` is the tag (version, here `0.23.1`)

- Instead of installing `fastp` from sratch, can do:

```
docker run quay.io/biocontainers/fastp:0.23.1--h79da9fb_0 fastp
```

---
## Use docker for external programs

.pull-left[
We don't have time to cover details of Docker today

Recommended resource:
- Carpentries Incubator Workshop ["Reproducible Computational Environments Using Containers"](https://carpentries-incubator.github.io/docker-introduction/index.html)
]

.pull-right[
<img src="https://www.docker.com/wp-content/uploads/2022/03/Moby-logo.png" alt="drawing" height="200" style="float:right">
]

---
## Where to find containers

- **Bioconda** https://bioconda.github.io/

- Biocontainers https://biocontainers.pro/

- Docker Hub* https://hub.docker.com/

All containers in Bioconda are also in Biocontainers

I find the search interface in **Bioconda** easier to use
 - look for `(see .../tags for valid values for <tag>)`

Containers in Bioconda and Biocontainers are **actively maintained and tested**

*Containers in Docker Hub come with no guarantees

---
## If you can't find a container...

[Roll your own](https://carpentries-incubator.github.io/docker-introduction/creating-container-images/index.html) (not covered here)

---
## Wrapping docker calls from R

babelwhale R package: https://github.com/dynverse/babelwhale

`babelwhale::run()` has similar syntax to `processx::run()`, but adds the container (image) name

.pull-left[

```r
babelwhale::run(
* container,
  command, args)
```

```r
babelwhale::run(
* "alpine",
  "ls", "-h")
```
]

---
## Loading files into docker: mounting

In order to connect the docker container to your files, you need to **mount** the directory.

```
docker run -v /path/to/local/dir:/path/to/container/dir
```

.center[
<img src="https://miro.medium.com/max/816/1*yrt2ZHCjW7w_5wyO5twX8Q.png" alt="drawing" height="230">
]

.small[https://bikramat.medium.com/docker-volume-63c50635e80c]

---
## Loading files into docker

```r
wd <- getwd()

babelwhale::run(
  container = "alpine",
  command = "ls",
  args = c("/wd_in_docker", "-h"),
* volumes = paste(wd, ":/wd_in_docker", sep = "")
  )
```

This gets confusing with multiple files and folders...

---
## My fork of {babelwhale}

Includes `run_auto_mount()` function to make it easier to mount files.

**For any file or folder argument, just provide the local path and name it "file"**

```r
# Install my fork of babelwhale
remotes::install_github("joelnitta/babelwhale@jnfeat")

babelwhale::run_auto_mount(
  container = "alpine",
  command = "ls",
* args = c(file = wd, "-h")
  )
```

---
## Example of run_auto_mount(): clean reads with fastp

```r
# Download some example read files
download.file(
  url = "https://raw.githubusercontent.com/OpenGene/fastp/master/testdata/R1.fq",
  destfile = "R1.fq")
download.file(
  url = "https://raw.githubusercontent.com/OpenGene/fastp/master/testdata/R2.fq",
  destfile = "R2.fq")

babelwhale::run_auto_mount(
  container = "quay.io/biocontainers/fastp:0.23.1--h79da9fb_0",
  command = "fastp",
  args = c(
    "-i", file = "R1.fq",
    "-I", file = "R2.fq",
    "-o", file = "R1_trim.fq",
    "-O", file = "R2_trim.fq",
    "-h", file = "trim_report.html"
  )
)
```

---
## Using run_auto_mount() in a wrapper function

```r
# Define function to trim read files
trim_reads <- function(
 f_read_in, r_read_in,
 f_read_out, r_read_out,
 report) {
 babelwhale::run_auto_mount(
 container =
 "quay.io/biocontainers/fastp:0.23.1--h79da9fb_0",
 command = "fastp",
 args = c(
 "-i", file = f_read_in,
 "-I", file = r_read_in,
 "-o", file = f_read_out,
 "-O", file = r_read_out,
 "-h", file = report
 )
 )
 # Return the output file paths
 c(f_read_out, r_read_out)
}
```
---

## Using run_auto_mount() in a wrapper function

```r
# Run function
trim_reads(
  f_read_in = "R1.fq", r_read_in = "R2.fq",
  f_read_out = "R1_trim.fq", r_read_out = "R2_trim.fq",
  report = "trim_report.html"
)
```

---
## Combine functions.R and _targets.R

.pull-left[
`functions.R`

```r
sam_to_bam <- function(
 sam, out_dir) {
 # Format output file
 out_file <-
 fs::path_file(sam) %>%
 fs::path_ext_remove() %>%
 fs::path_ext_set(".bam") %>%
 fs::path(out_dir, .)
 # Run docker
 run_auto_mount(
 container_id = "quay.io/biocontainers/samtools:1.9--h91753b0_8",
 command = "samtools",
 args = c(
 "view", "-S",
 "-b", file = sam),
 stdout = out_file
 )
 out_file
}
```
]

.pull-right[
`_targets.R`

```r
library(targets)
source("R/functions.R")

tar_plan(
  # Convert SAM to BAM
  tar_file(
    aligned_bam,
    sam_to_bam(
      aligned_sam,
      out_dir = "_targets/user/intermediates/bam"),
    pattern = map(aligned_sam)
  )
)
```
]

---
## One final detail: environment for R

Docker is great for maintaining reproducible computing environments.

But how do we maintain the **environment that is calling docker?** 🤔

- Solution: use [conda](https://docs.conda.io/en/latest/miniconda.html) and [renv](https://rstudio.github.io/renv/articles/renv.html)

---
## conda

> Conda is an open source **package management system** ... It was created for Python programs, but it can package and distribute **software for any language**.

We don't have time to cover details today.

Recommended resource: Carpentries Incubator Workshop ["Introduction to Conda for (Data) Scientists"](https://carpentries-incubator.github.io/introduction-to-conda-for-data-scientists/)

.footnote[https://docs.conda.io/en/latest/]

---
## conda

Use an `environment.yml` file to define needed software:

```
name: bioinfo-example-env
channels:
  - conda-forge
  - bioconda
  - defaults
dependencies:
  - r-renv=0.15.5
```

---
## conda

- Install with `conda env create -f environment.yml`

- Activate with `conda activate bioinfo-example-env` (`bioinfo-example-env` is name of example environment)

- Deactivate with `conda deactivate`

```
(base) joelnitta$ conda activate bioinfo-example-env
(bioinfo-example-env) joelnitta$
```

---
## renv

Our conda environment includes R and the [{renv} package](https://rstudio.github.io/renv/articles/renv.html), which is a package manager for R.

{renv} uses a file called `renv.lock` to track R package versions.

For example,

```
"Matrix": {
      "Package": "Matrix",
      "Version": "1.3-4",
      "Source": "Repository",
      "Repository": "CRAN",
      "Hash": "4ed05e9c9726267e4a5872e09c04587c"
    }
```

---
## renv

- Turn on with `renv::activate()`
- Install packages with `renv::restore()`
- Update packages with `renv::snapshot()`

You should track `renv.lock` with git. This way, any changes to package versions are all documented.

---
## Putting it all together: Variant calling workflow

- https://github.com/joelnitta/targets_vcf_example
  - Based on [Data Carpentry Genomics lesson](https://datacarpentry.org/wrangling-genomics/04-variant_calling/index.html)

To run the analysis, do:

```bash
git clone https://github.com/joelnitta/targets_vcf_example
cd targets_vcf_example
conda env create -f environment.yml
conda activate vcf-example-env
Rscript -e 'renv::restore()'
Rscript -e 'targets::tar_make()'
```

When it's done, look for HTML report in `_targets/user/results/`

---
class: inverse, center, middle

# Questions?
